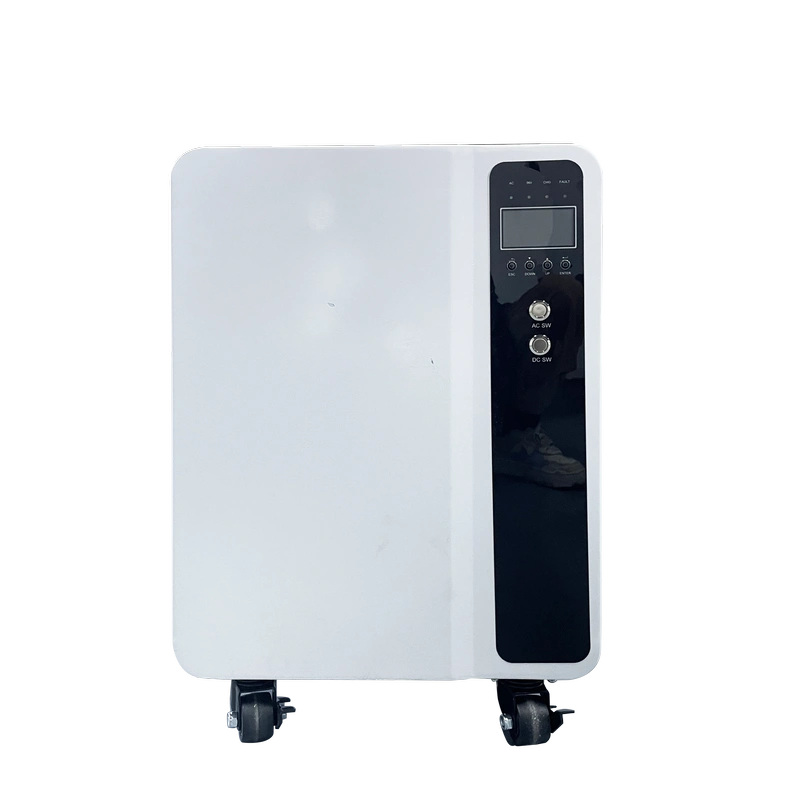

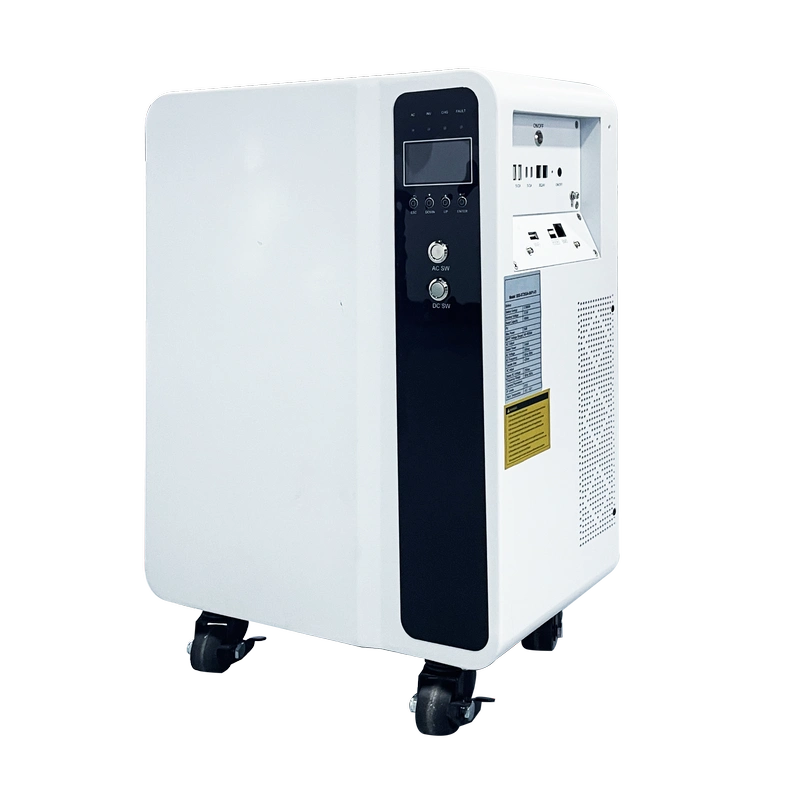

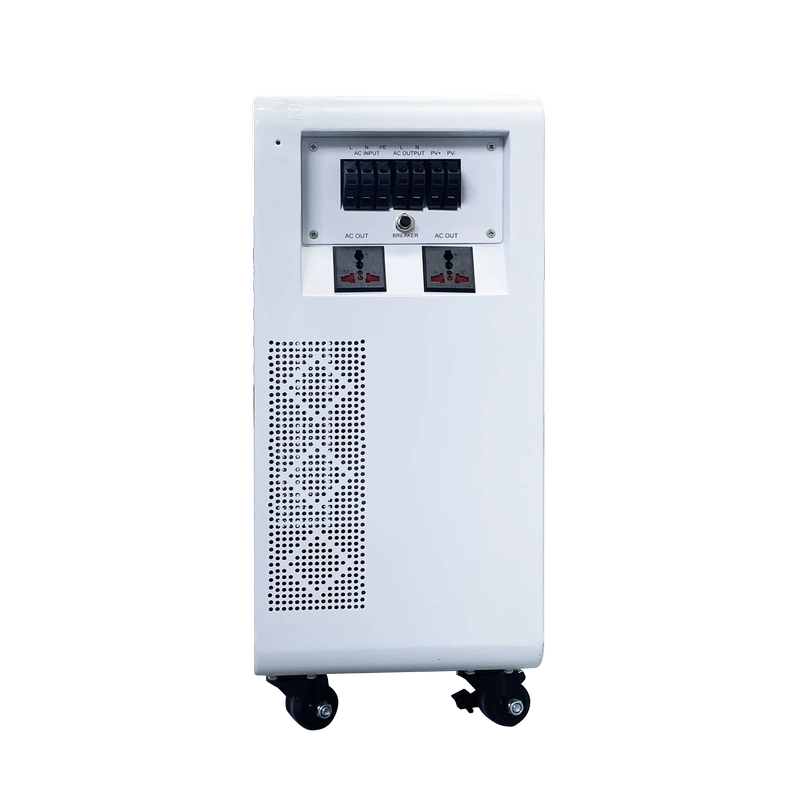

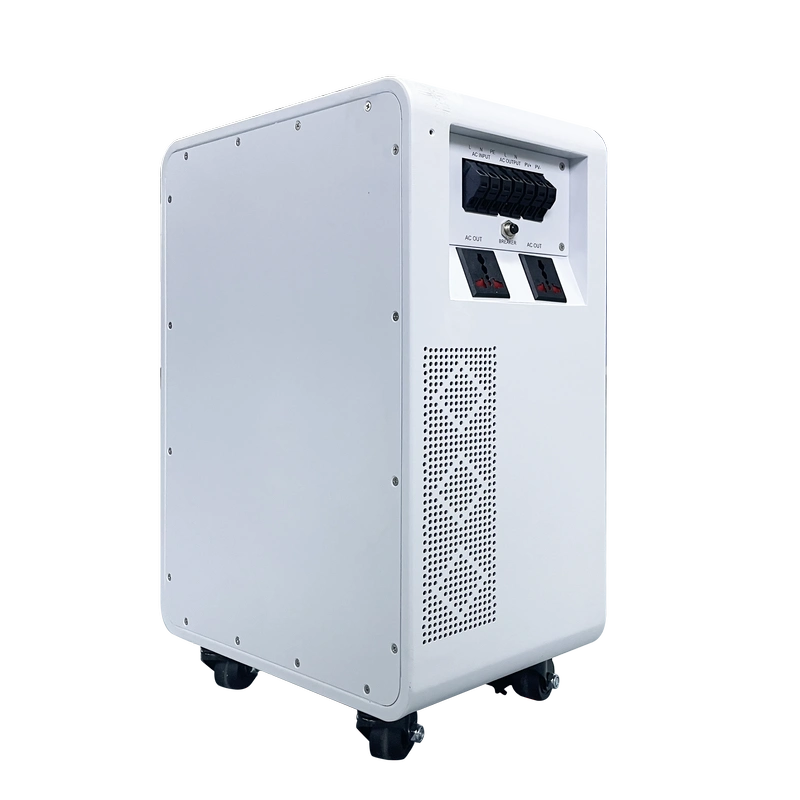

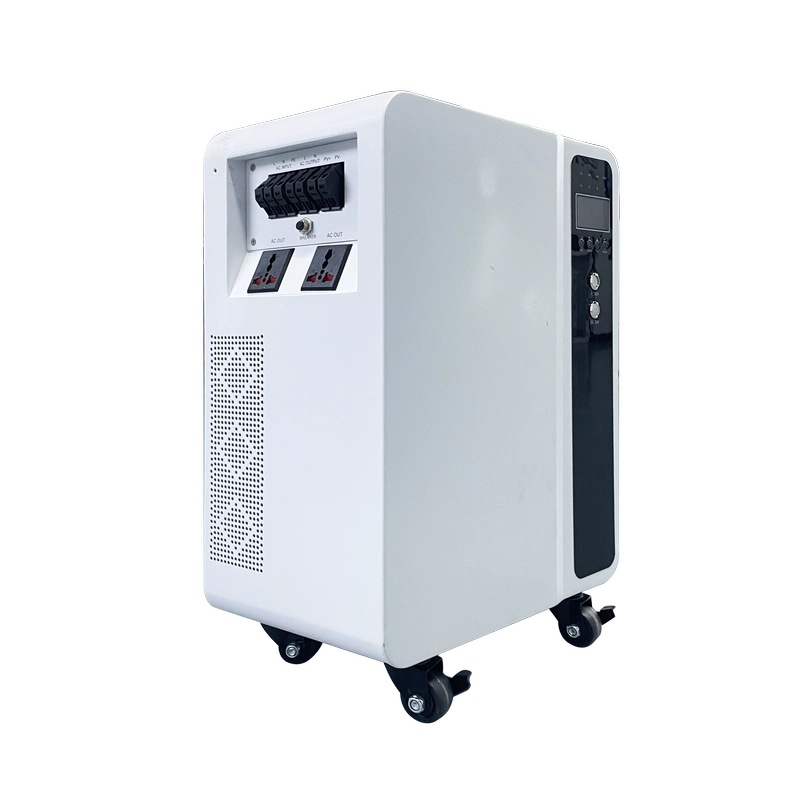

2.56KWh/5KWh 3KW 6KW All in One Inverter Battery With Swivel Wheels

This Standing Floor LiFePO4 Battery series offers capacities 2.56KWH+3KW and 5.12KWH+6KW, providing versatile energy storage solutions for residential applications.  The integrated smart BMS monitors battery status in real time, protecting against overcharge, over-discharge, and short circuits.

  • Wide Capacity (2.56–5.12kWh): Flexible options for home energy storage needs
  • LiFePO4 Technology: Safe, stable, and long cycle life (>6000 cycles)
  • Floor Standing Design: Space-saving vertical structure for easy installation
  • High Compatibility: Works with most AC/DC inverter systems
  • Smart BMS Protection: Real-time monitoring with full safety protection
  • Eco-Friendly & Durable: Non-toxic LiFePO4 chemistry for long-term use
  • Grade A Cells: Higher reliability, longer lifespan, lower self-discharge
Enquiry
2.56KWh/5KWh 3KW 6KW All in One Inverter Battery With Swivel Wheels
2.56KWh/5KWh 3KW 6KW All in One Inverter Battery With Swivel Wheels
2.56KWh/5KWh 3KW 6KW All in One Inverter Battery With Swivel Wheels
2.56KWh/5KWh 3KW 6KW All in One Inverter Battery With Swivel Wheels
2.56KWh/5KWh 3KW 6KW All in One Inverter Battery With Swivel Wheels
2.56KWh/5KWh 3KW 6KW All in One Inverter Battery With Swivel Wheels

Product Introduction

The 5kWh + 6kW X-Stand All-in-One ESS is a compact and elegant energy storage solution designed for modern homes. Equipped with 16pcs 3.2V 100Ah LiFePO₄ battery cells and a 3kW pure sine wave inverter, it delivers reliable power for daily energy consumption and emergency backup.

Superior Performance and Longevity

Superior Performance and Longevity

Equipped with premium LiFePO4 battery technology, the system delivers over 6000 cycles, ensuring durability and reliable performance for years. It supports plug-and-play, Ideal for home backup power, whole-house energy storage, or commercial energy projects, this battery delivers reliable, efficient, and eco-friendly energy solutions.

Compact All-in-One Design

Compact All-in-One Design

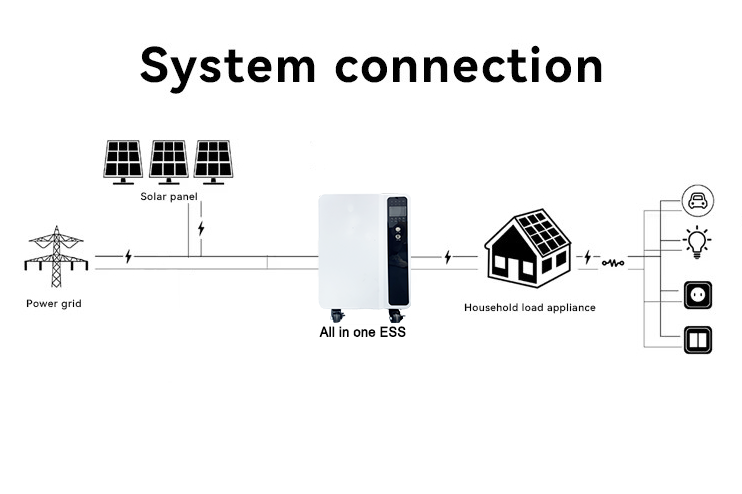

This integrated solution combines the inverter and battery, eliminating the need for complex installations. It supports direct connection to PV panels, the grid, and additional power sources, offering flexibility and ease of setup for residential energy storage systems.

Technical Data

If you have any questions during the browsing process, please feel free to contact us and communicate with us at any time.
  2.56KWh+3KW 5.12KWh+6KW 10.24KWh+10KW
Model WFS-ST2K5A-3KF1-X   WFS-ST5K1A-6KF1-X    WFS-ST10K2A-10KF1-X
Battery
Battery Type LiFePO4 Battery LiFePO4 Battery LiFePO4 Battery
Battery Energy 2.56kWh 5.12kWh 10.24kWh
Nominal Voltage    25.6V 51.2V 51.2V
PV
Max.Power 5KW 8.5KW 10.4KW(5200W*2)
Max.PV Voltage 500Vdc 500Vdc 500Vdc
MPPT Voltage Range   40~450Vdc 60~450Vdc 60~450Vdc
AC Output
Rated Power 3.6kW 6kW 10kW
AC Voltage 230Vac±5%
AC Frequency 50Hz/60Hz
Efficiency ≤94%
Transfer Time <20ms
Waveform Pure sine wave
AC Input
Rated AC Voltage 230Vac
AC Voltage Range 170~280Vac(for PC)90~280Vac(for Applis)
Frequency Range 50Hz/60Hz
General Parameters
Altitude ≤2000m
Humidity 5%~95%
Work Temperature -10℃~50℃
IP Grade IP20
Communication RS485/WiFi
Size(mm) 370*225*530mm 460*277*650mm 505*306*820mm
Weight(kg) 30kg(about) 55kg(about) 105kg(about)
