All in One 1.28KWH 2.56KWH 5KWH 10KWH Powerwall LiFePO4 Battery With Solar Inverter

This Wall Mounted LiFePO4 Battery offers 1.28kWh–10kWh capacity for residential, commercial, and industrial use. Built with LiFePO4 cells, it ensures high safety, long life, and stable performance.Smart BMS protects against overcharge, over-discharge, and short circuit. Wall-mounted design enables easy installation and plug-and-play inverter integration.Ideal for home backup, solar storage, and commercial energy systems.

All-in-One Energy Storage System:integrated inverter + LiFePO4 battery.
Smart BMS Protection:It can prevent battery overcharge, over-discharge, and short circuit.
Grade A LiFePO4 Cells:6000+ cycles lifespan. Safer, lighter,high power denisty.
Flexible Capacity:support expandable from 1.28kWh to 10kWh for home energy storage.
Multi-Application:perfect for home backup, solar systems, wind storage, and emergency power supply.
Safer & Guaranteed:Stable LiFePO4 chemistry. No fire risk. 5-year battery warranty.

Enquiry

All in One 1.28KWH 2.56KWH 5KWH 10KWH Powerwall LiFePO4 Battery With Solar Inverter

Product Introduction

The all in one powerwall built in inverter and battery with capacity of 1.28kwh to 10.24kwh for home energy storage system,it's easy to install and supports plug-and-play!

Support real-time monitoring

Support WiFi monitoring enables real-time remote tracking of battery status, including voltage, capacity, and performance, allowing convenient control and efficient energy management anytime.

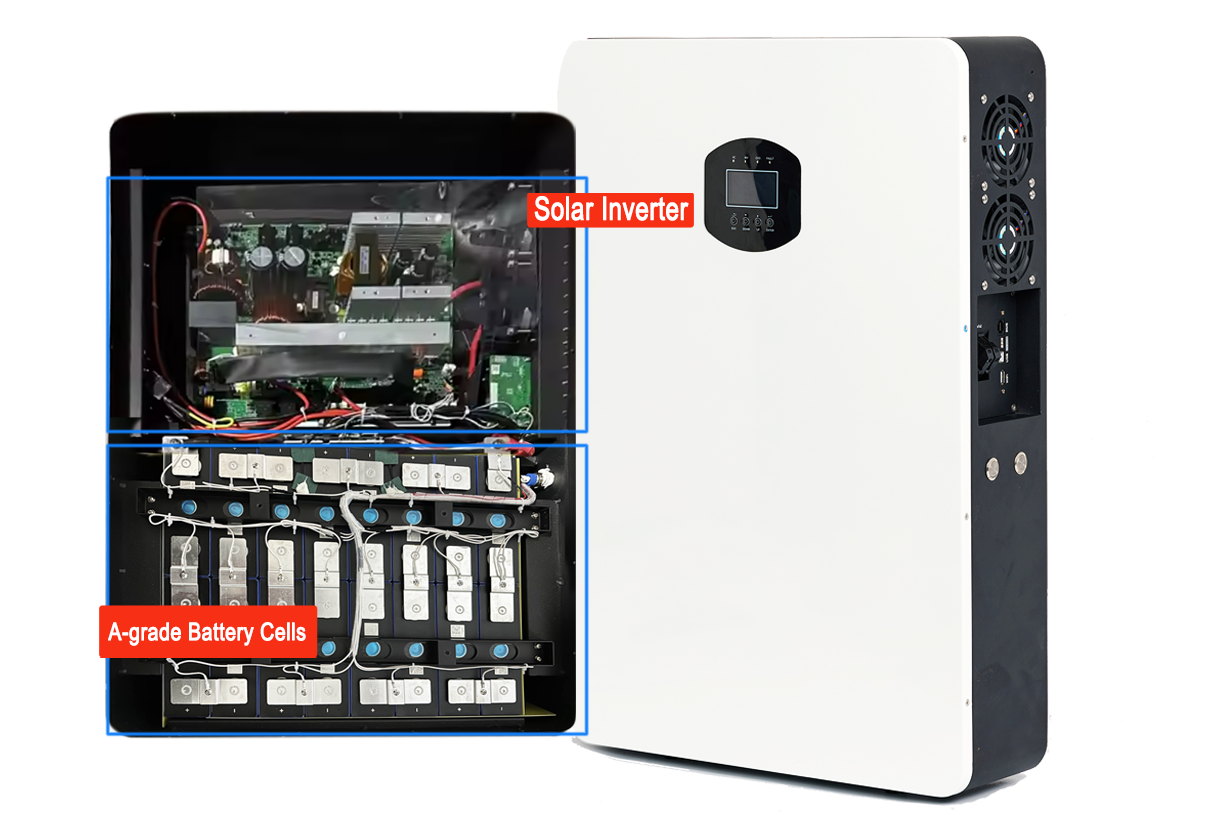

Integrated inverter + LiFePO4 battery

The all-in-one energy storage system integrates the inverter and lithium battery into a single unit, eliminating complex wiring and installation hassle. With just one compact device, it also saves valuable space.

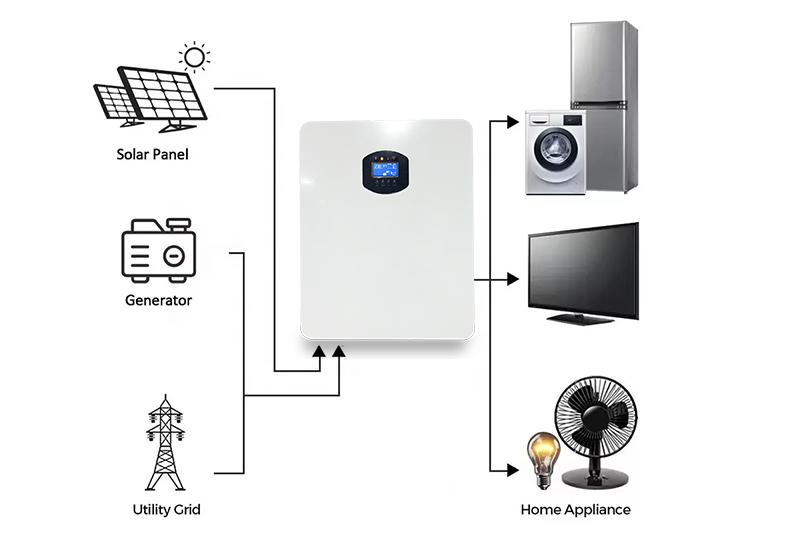

Inverter battery working diagram

It supports charging from solar power, grid electricity, and diesel generators, providing a reliable solution for power outages and high electricity costs.

Technical Data

If you have any questions during the browsing process, please feel free to contact us and communicate with us at any time.

	1.28KWh+1KW	2.56KWh+3KW	5.12KWh+6KW	10.24KWh+6KW	10.24KWh+10KW
Model	WFS-1K3A-1KF1-A1	WFS-2K5A-3KF1-A1	WFS-5K1A-5KF1-A1	WFS-10K2A-6KF1-A1	WFS-10K2A-10KF1-A1
Battery
Battery Type	LiFeP04 Battery
Battery Energy	1.28KWh	2.56KWh	5.12KWh	10.24KWh	10.24KWh
Nominal Voltage	12.8V	25.6V	51.2V	51.2V	51.2V
Rated Capacity	100Ah	100Ah	100Ah	200Ah	200Ah
Voltage Range	11.0~14.0V	22.028.0V	42.0~57.0V	42.057.0V	42.0~57.0V
PV
Max.Power	600W	3000W	8500W	8500W	10.4KW(5200W*2)
Max.PV Voltage	150Vdc	450Vdc	500Vdc	500Vdc	500Vdc
MPPT Voltage Range	20~150Vdc	30~430Vdc	60~450Vdc	60450Vdc	60~450Vdc
AC Output
Rated Power	1000W	3000W	6000W	60000W	10000W
AC Voltage	230Vac±5%
AC Frequency	50Hz/60Hz
Efficiency	≤93%	≤94%	<94%	≤94%	≤94%
Transfer time	10ms(for PC)20ms(for Appliance)
Waveform	Pure sine wave
AC Input
Rated AC Voltage	230Vac
AC Voltage Range	170280Vac(for PC90~280Vac(for Applis)
Frequency Range	50Hz/60Hz(Auto sensing)
General Parameters
Altidude	≤2000m
Humidity	5%95%
Work Temperature	-10℃~50℃
Size(mm)	450140280	450140570	500150730	480220770mm	6201501300
Weight(kg)	25 (about)	32 (about)	58 (about)	87 (about)	95 (about)
*THE PARAMETERS ARE FOR REFERENCE ONLY,THE ACTUAL PRODUCT SHALL PREVAIL, SUPPORT CUSTOMIZATION,AND ON-DEMAND CUSTOMIZATION
