215kWh 241kWh 261kWh 3 Phase Commercial & Industrial ESS LiFePO4 Battery Cabinet

Maximize efficiency, reliability, and flexibility with WFS’s fully integrated energy storage solution, designed for small-to-medium commercial and industrial applications. Combining batteries, bi-directional PCS, MPPT controllers, and diesel generator interfaces in one pre-commissioned unit, it minimizes on-site installation time and project costs.

All-in-One Integration
High Power & Capacity
Flexible Multi-Energy Operation
Rugged Outdoor Design, IP54 Protection Rating
Advanced Safety & Reliability
Scalable & Customizable
Cycle Life: ≥6000 cycles @ 80% DOD

Enquiry

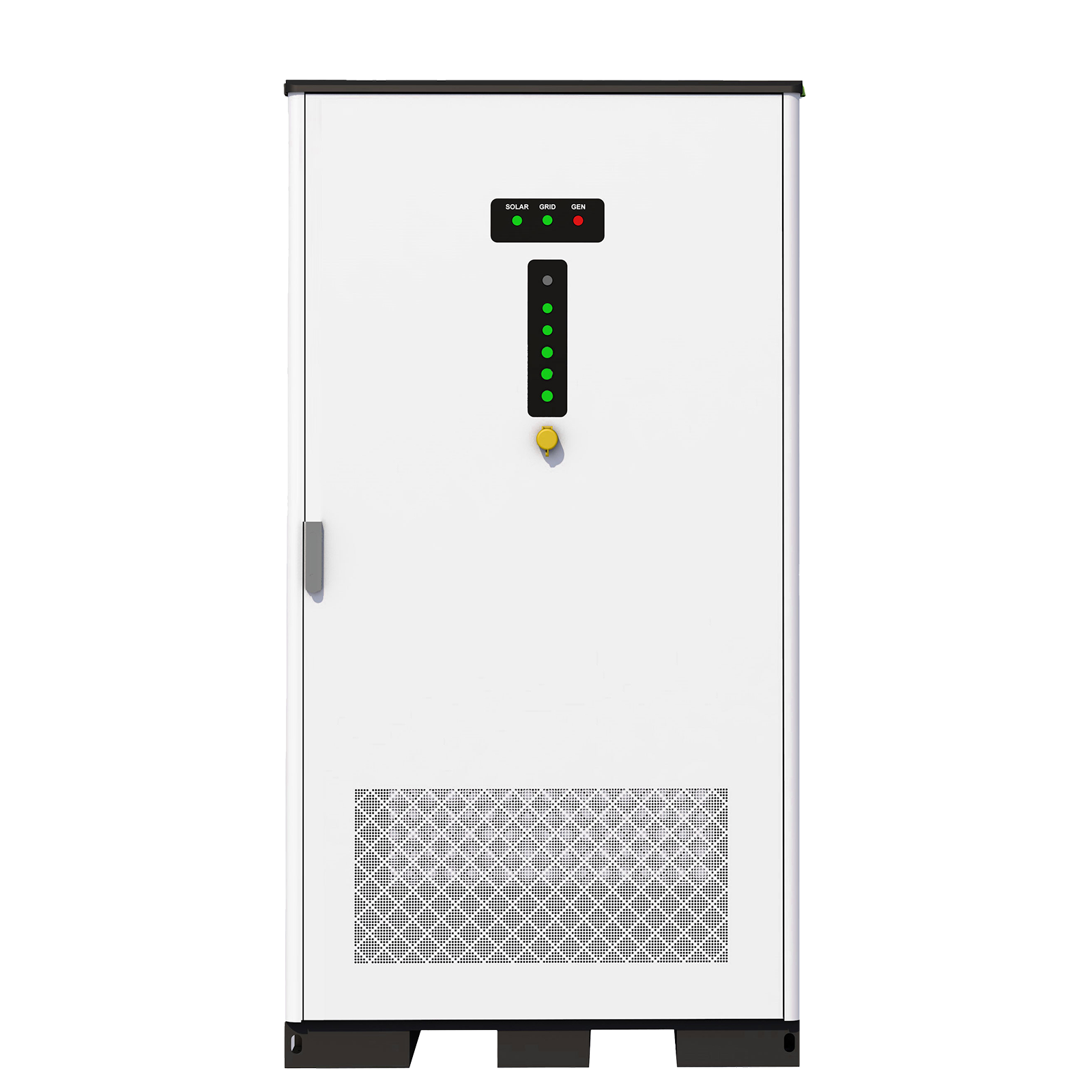

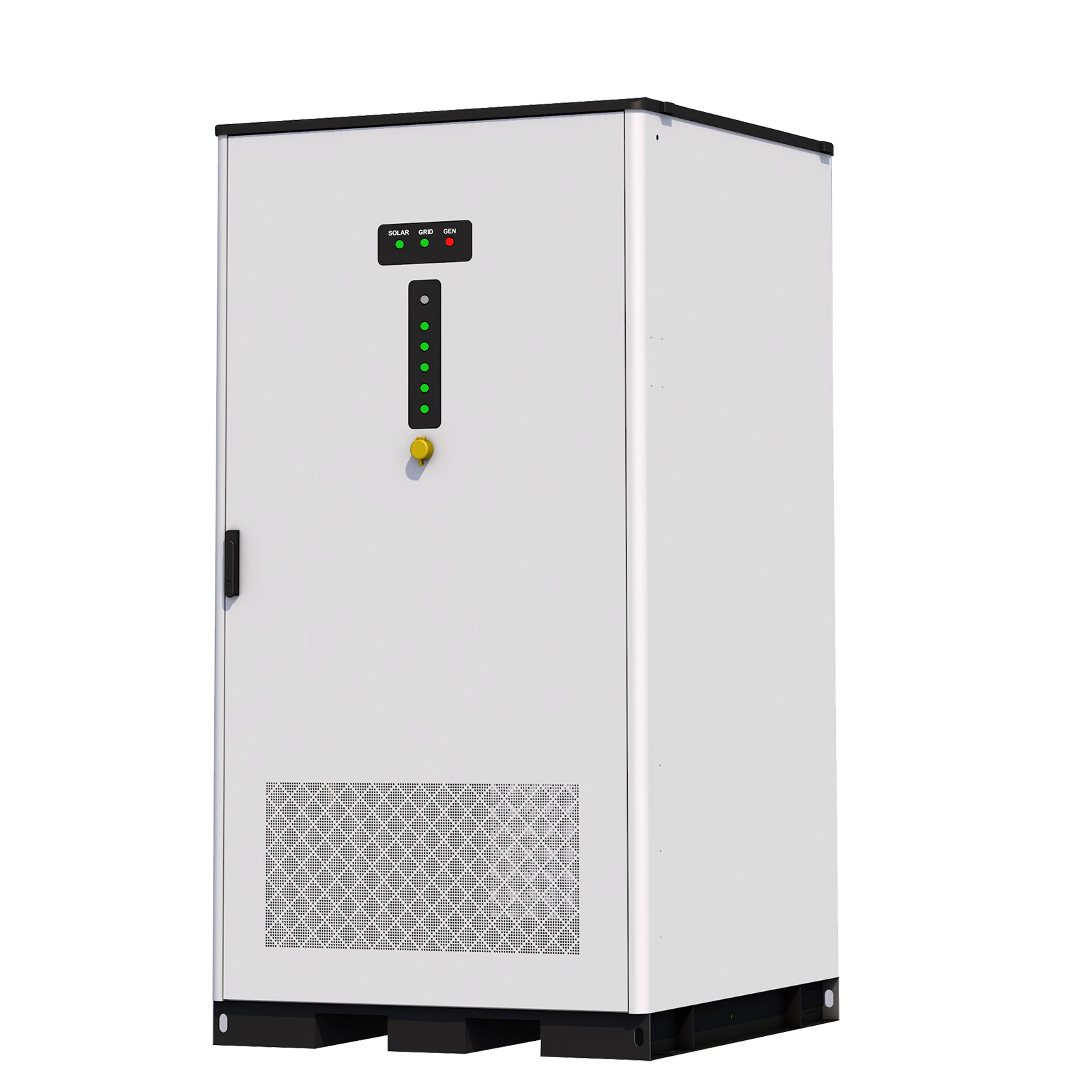

215kWh 241kWh 261kWh 3 Phase Commercial & Industrial ESS LiFePO4 Battery Cabinet

Product Introduction

These 215KWh/100KW 241KWh/125KW 261KWh/125KW industrial & commercial air cooling integrated energy storage cabinet is designed for industrial parks, mining sites, large commercial centers, and solar-storage-charging micro grid applications.

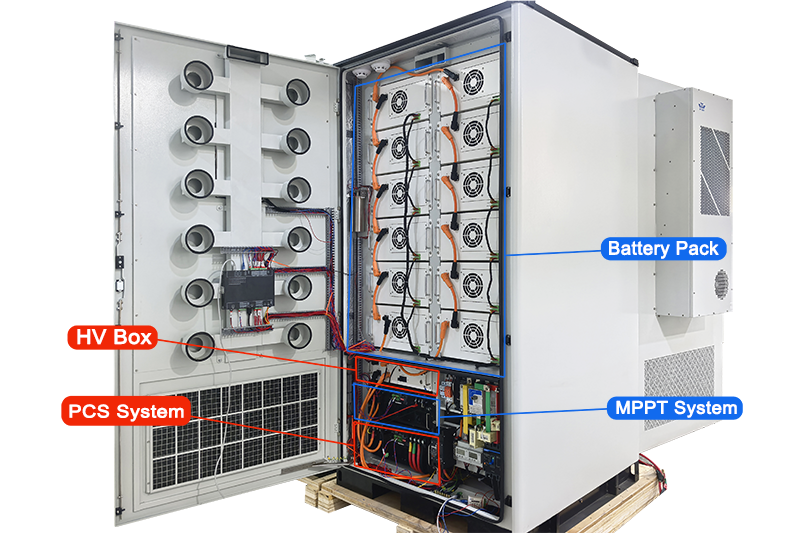

All-in-One Integration

Batteries, PCS, MPPT, and diesel generator interface in a single system, seamlessly connecting with PV, grid, and diesel generators for multi-energy coordinated operation.

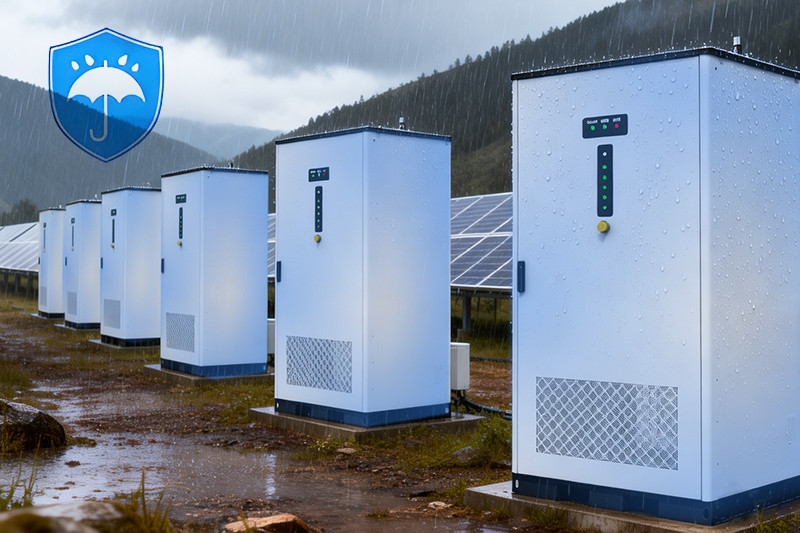

IP54-rated for Dust and Water

IP54-rated for dust, water, and temperature extremes—perfect for outdoor commercial sites, industrial parks, and remote projects without additional housing.

Support for Extension and Customization

Supports up to 10 units in parallel, allowing flexible power and capacity expansion. Full international safety and grid certifications enable quick deployment. Customizable interfaces, protocols, and capacities meet EPC and system integrator requirements.

Technical Data

If you have any questions during the browsing process, please feel free to contact us and communicate with us at any time.

	215kWh+100kW	241kWh+125kW	261kWh+125kW
Model	WFS-B215-100H3S-120M1-HX1	WFS-B241-125H3S-120M1-HX1	WFS-B261-125H3S-120M1-HX1
Battery
Battery Type	LiFePO4 Battery
Rated Energy	215KWh	241kWh	261kWh
PV
Max.Power	120kW	120kW	120kW
Max.PV Voltage	950Vdc
MPPT Voltage Range	250~850Vdc
Max.PV Input Current	200A
MPPT Channels	1or 4
AC(On-grid)
Rated Power	100kW 125KW		125KW
AC Voltage	400Vac/230Vac(L1/L2/L3/N/PE)
Rated Frequency	50Hz/60Hz
Max.AC Current	150A	180A	180A
AC(Off- grid)
Rated Power	100kW	125KW	125KW
AC Voltage	400Vac/230Vac(L1/L2/L3/N/PE)
Rated Frequency	50Hz/60Hz
Max.AC Current	150A	180A	180A
Switching Time	<10ms
Parallel Number	10
General Parameter
Diesel Generator Port	Yes
Communication Type	RS485/WiFi
IP Grade	IP54
Fire Protection System	Yes
Operating Temperature	-10℃~55℃
Humidity Range	5%~95%
Altitude	<2000m
Battery Cooling Method	Air-Conditioner
PCS Cooling Method	Intelligent cooling
Size(mm)	119011702260mm	119011702260mm	119011702260mm
Weight(kg)	2500kg(about)	2520kg(about)	2600kg(about)
