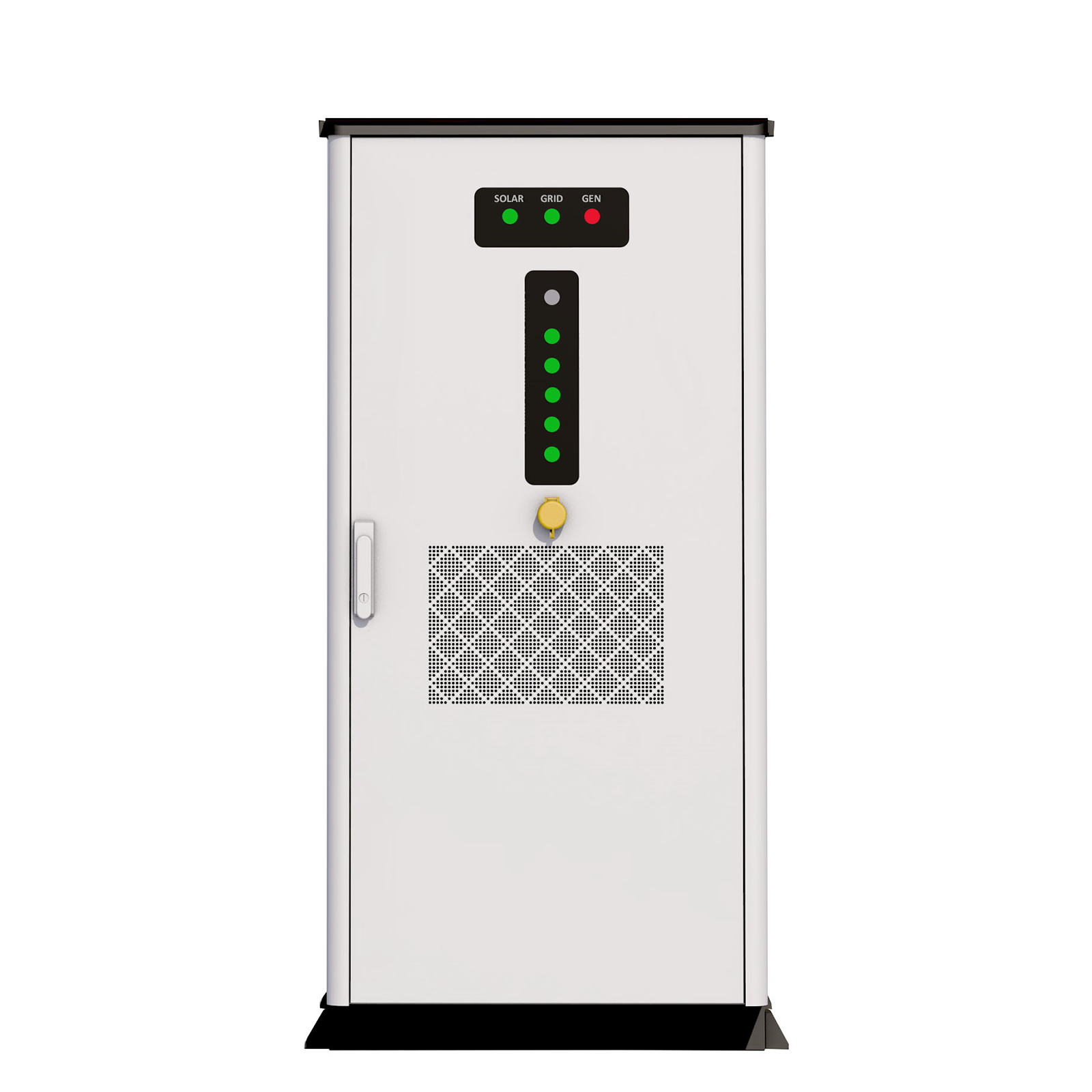

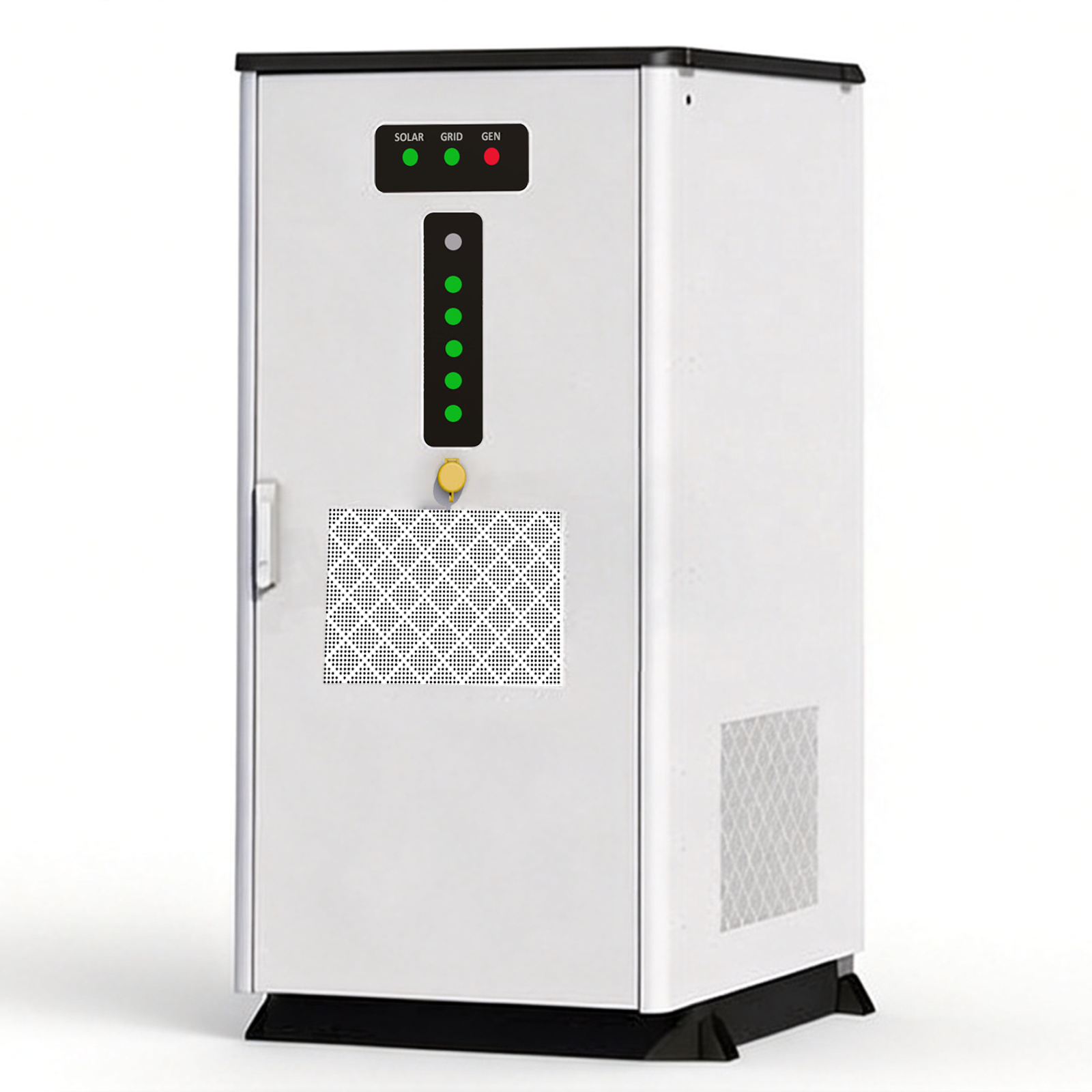

25KW 48KWH 64KWH Mini Commercial ESS Energy Storage Battery Cabinet

This low-voltage microgrid energy storage all-in-one cabinet is built with Grade A LiFePO₄ cells and a 25kW PCS, specifically designed for applications with relatively low backup power demand, such as factories, hospitals, villas, and schools.Suitable for off-grid and unstable power areas, the system delivers reliable power via solar, grid, or generator input. It reduces grid dependence, provides backup during outages, and ensures stable energy supply. For peak shaving and load shifting, it stores energy during off-peak periods and discharges during peak hours, helping lower electricity costs and improve energy efficiency.

  • Highly integrated design for easier installation
  • Enhanced safety and reliability
  • Flexible expansion for multiple application scenarios
  • Reduced operation and maintenance costs
  • Strong multi-source compatibility (solar, grid, and diesel generator)
  • UPS-level switching for improved power stability and uninterrupted supply
Enquiry
25KW 48KWH 64KWH Mini Commercial ESS Energy Storage Battery Cabinet
25KW 48KWH 64KWH Mini Commercial ESS Energy Storage Battery Cabinet
25KW 48KWH 64KWH Mini Commercial ESS Energy Storage Battery Cabinet

Product Introduction

The 48KWH 64KWH low voltage lithium-ion phosphate battery cabinet,integrated PV, diesel generator, and grid power charging interfaces,supporting multiple battery units in parallel for multi-scenario applications.

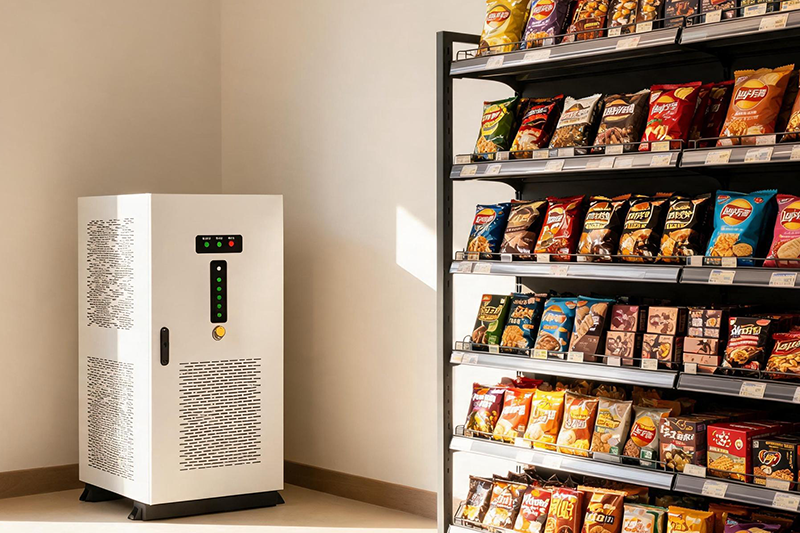

UPS-level Switching Capability

UPS-level Switching Capability

Enables seamless and rapid power transfer during grid outages, ensuring uninterrupted operation of critical loads and significantly improving overall power reliability.

Commercial Peak Shaving and Load Shifting

Commercial Peak Shaving and Load Shifting

By leveraging a LiFePO₄ battery cabinet for peak shaving and load shifting, daytime electricity demand is shifted to nighttime, reducing peak loads and increasing off-peak usage. This smooths the grid load curve and improves operational stability. For users, it replaces high-cost daytime electricity with lower-cost nighttime power, effectively reducing overall energy costs.

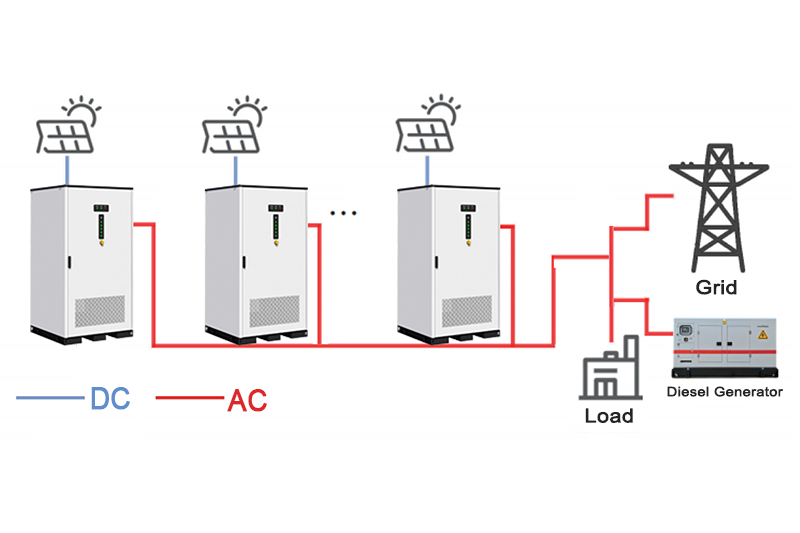

Support Parallel up to 10 Units

Support Parallel up to 10 Units

The lithium battery cabinet support parralled up to 10 units,the max. Supports expansion up to a max. capacity of 640 kWh with the ever-growing demand for electricity.

Technical Data

If you have any questions during the browsing process, please feel free to contact us and communicate with us at any time.
  48kWh+25kW 64kWh+25kW
Model WFS-B48-25H3-36M6-X1 WFS-B64-25H3-36M6-X1
Battery
Battery Type LiFePO4 Battery
Rated Energy 48kWh                                 64kWh
Nominal Voltage 51.2V
PV
Max.Power 36kW
Max.PVVoltage 500Vdc
MPPT Voltage Range 90~450Vdc
Max.PV Current 22A/Channel
MPPT Channels 6
AC(On-grid)
Rated Power 25KW
AC Voltage 400Vac/230Vac
Rated Frequency 50Hz/60Hz
Max.AC Current 37A
AC(Off-grid)
Rated Power 25kW
AC Voltage 400Vac/230Vac
Rated Frequency 50Hz/60Hz
Max.AC Current 37A
General Parameters
Communication Type RS485/WiFi
IP Grade IP54
Fire Protection System Yes
Operating Temperature -10℃~50℃
Humidity Range 5%~95%
Altitude <2000m
Battery Cooling Method Fan
PCS Cooling Method Intelligent cooling
Size(mm) 750*950*1580mm 750*950*1580mm
Weight(kg) 600kg(about) 700kg(about)
