5KWh~16KWh LiFePO4 Rack Mounted Battery Backup Power for Residential & Commercial Solar Energy Storage

The rack battery built with high-safety LiFePO₄ cells and an advanced intelligent BMS, delivering ultra-long cycle life and maximum safety performance.Supports rack-mounted, cabinet, and floor-standing installation, enabling fast and flexible deployment across different scenarios.Ideal for home energy storage, small businesses, and communication base stations.Certified by UL, IEC, CE, and UN38.3 for global market compliance and reliability.

Multiple safety protection features, ensuring zero risk when using electricity
15 years of self-developed BMS at the automotive level, precise and intelligent control
Compatible with all brand inverters, plug and play
Multiple batteries connected in parallel, expandable as needed
Standard chassis design, flexible installation for a wide range of scenarios
Support ODM/OEM customization services

Enquiry

5KWh~16KWh LiFePO4 Rack Mounted Battery Backup Power for Residential & Commercial Solar Energy Storage

Product Introduction

This rack-mounted lithium battery is a standardized energy storage solution developed by WFS, specifically designed for residential energy storage, communication base stations, and small-scale industrial and commercial backup power applications.Backed by a core technical team originating from leading enterprises such as BYD and Huawei, it has been deeply engaged in the energy storage industry for over 15 years, holding multiple core patents in BMS technology and key lithium battery manufacturing processes.With a cumulative shipment volume exceeding 2,500MWh, WFS has served more than 2,000 energy storage customers worldwide. Its products are exported to over 100 countries and regions, earning strong global recognition and trust.

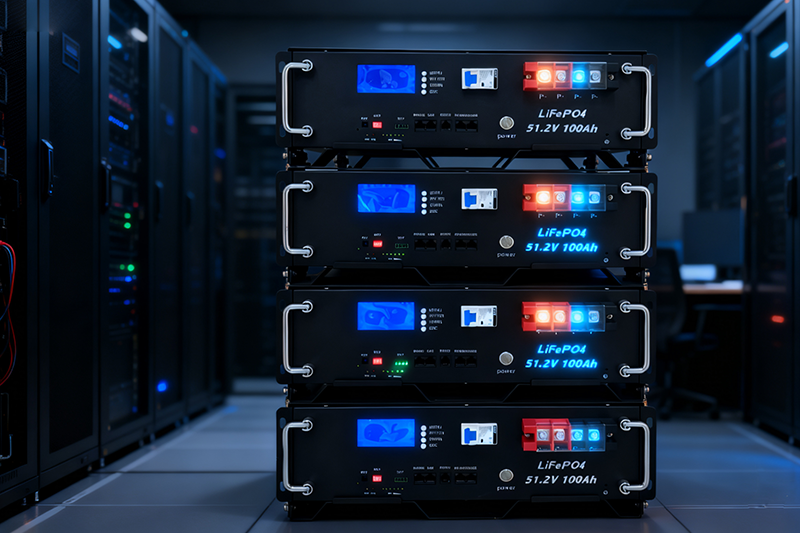

Parallel Capacity Expansion

Supports up to 15 units parallel connection, flexible capacity expansion customized for customer demands.

Smart BMS & Remote Monitor

Equipped with the WFS 15-year automotive-grade iterative self-developed BMS battery management system, it features a smart self-learning SOC algorithm with completely independent intellectual property rights. The battery capacity measurement accuracy can reach within ±2%. It can precisely control the entire battery charging and discharging process, achieving six-level real-time protection against overcharge, overdischarge, overcurrent, overtemperature, short circuit, and reverse polarity. In case of abnormal conditions, it can respond with power-off in seconds, significantly extending the battery cycle life and ensuring the long-term stability and reliability of the equipment operation.

UPS Backup Power

Supports up to 15 batteries in parallel expansion, enabling flexible capacity scaling from small household backup power to continuous power supply for small businesses and communication base stations.

Technical Data

If you have any questions during the browsing process, please feel free to contact us and communicate with us at any time.

5kWh	7.5kWh	10kWh	14.3kWh	16kWh
48/51.2V	48/51.2V	48/51.2V	48/51.2V	48/51.2V
100Ah	150Ah	200Ah	280Ah	314Ah
54.0/58.0V	54.0/58.0V	54.0/58.0V	54.0/58.0V	54.0/58.0V
39.0/42.0V	39.0/42.0V	39.0/42.0V	39.0/42.0V	39.0/42.0V
50/100A	75/100A	100A	100/150A	100/150A
100A	100A	150/200A	200A	200A
RS485/CAN	RS485/CAN	RS485/CAN	RS485/CAN	RS485/CAN
442420133mm/3U	442450168mm	442420266mm	400715230mm	400715230mm
40/43kg(about)	63/66kg(about)	85/88kg(about)	100kg(about)	105kg(about)
