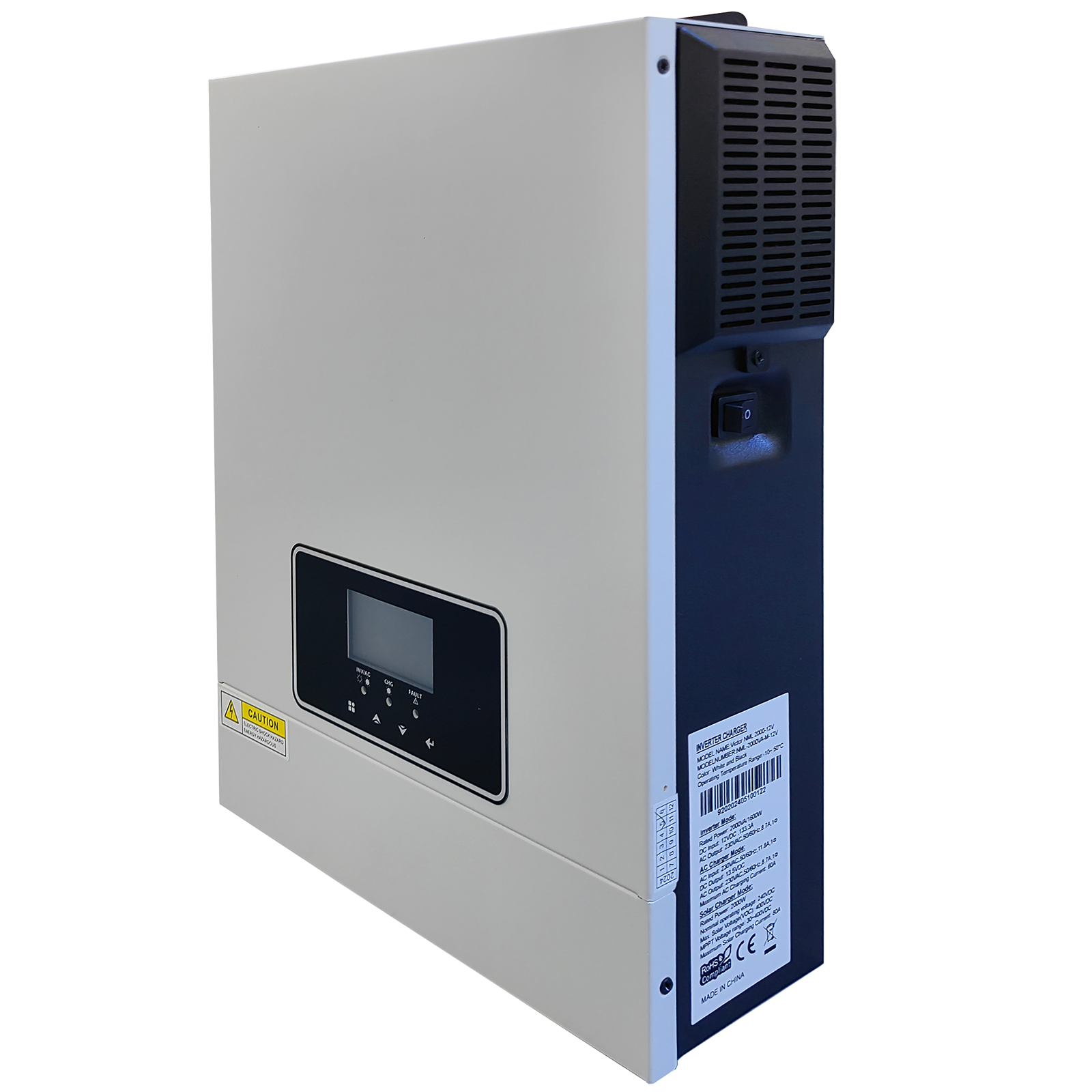

2.0KVA / 3.2KVA Off-Grid Pure Sine Wave Solar Inverter 12V 24V for Home & Remote Use

Whether you're living off-grid or simply preparing for power outages, our inverter ensures continuous, stable, and efficient electricity—anytime the grid is unavailable.The off-grid inverter 2.0KVA / 3.2KVA (12V / 24V) deliver stable and efficient power even in the most demanding off-grid environments. Our pure off-grid inverter series is designed to convert DC power from batteries or solar systems into clean AC electricity—keeping your essential appliances running without interruption.

Pure Sine Wave Output
Solar & Generator Ready
Intelligent Protection System
99% High Conversion Efficiency
Compact & Easy Installation

Enquiry

2.0KVA / 3.2KVA Off-Grid Pure Sine Wave Solar Inverter 12V 24V for Home & Remote Use

Product Introduction

High efficiency 2.0KVA & 3.2KVA off-grid inverter with pure sine wave output. Supports 12V/24V battery systems, ideal for solar energy systems, home backup power, and remote off-grid applications.

Pure Sine Wave Inverter Technology

Delivers clean and stable AC power, protecting sensitive devices such as refrigerators, TVs, computers, and routers.

Support WiFi Remote Real-time Monitoring

Supports WiFi fuction, allowing real-time viewing of photovoltaic power (PV power), battery charge (SOC), load usage, input/output voltage and current, etc.

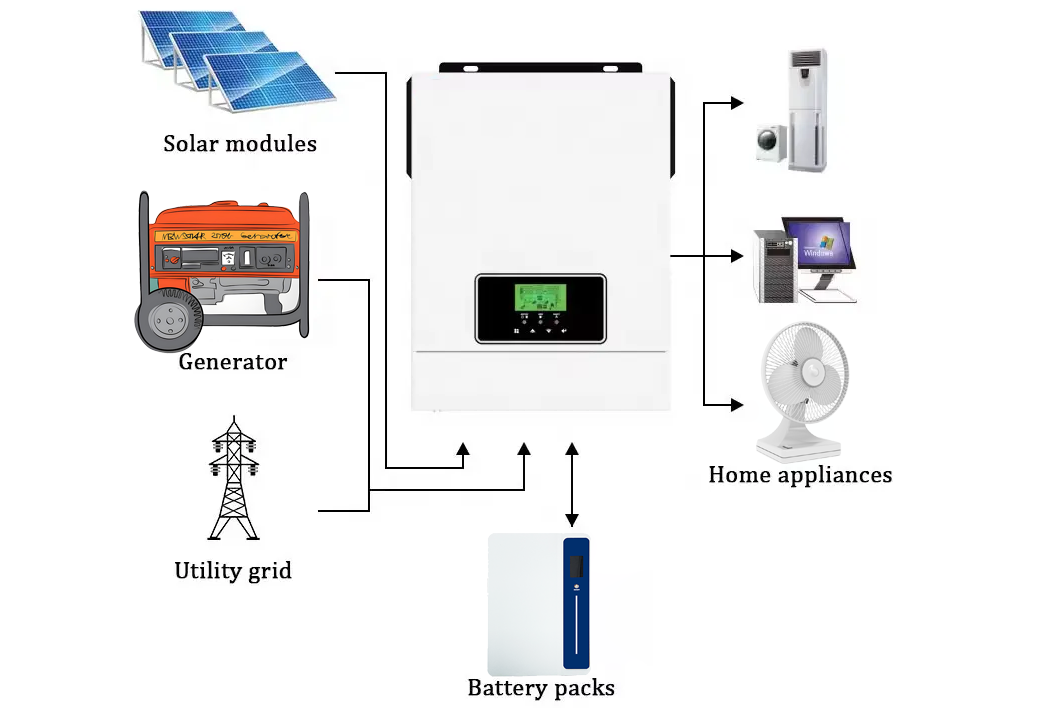

Solar & Generator Ready

Easily integrates with solar panels, batteries, and diesel generators to build a fully independent energy system.

Technical Data

If you have any questions during the browsing process, please feel free to contact us and communicate with us at any time.

Model			2.0KVA	3.2KVA
Rated Power			1600W	3000W
Battery Voltage			12VDC	24VDC
Product Size(LWHmm)			357×273×95
N.W(Kg)			4	5
Solar	MPPT tracking voltage range		30V-400V
	Max PVInput Voltage		450V
	PV Array Maximum Power		2000W	3000W
AC Input	AC Input Voltage Range		170VAC~280VAC(UPS mode)
AC Input	AC Input Frequency Range		50Hz/60Hz
Output	Output efficiency(Battery/PV Mode)		94%(Peak value)
	Output Voltage(Battery/PV Mode)		220VAC±2%/230VAC±2%/240VAC±2%
	Output Frequency(Battery/PV Mode)		50Hz or 60Hz
	Output Wave(Battery/PV Mode)		Pure Sine Wave
	Efficiency(AC Mode)		>99%
Battery	Battery Type	VRLA Battery	Charge Voltage:13.8V;Float Voltage:13.7V(Single battery voltage)
	Battery Type	Customize battery	Charging and discharging parameters of different types of batteries can be customized according to user requirements
	Max AC Charging Current		60A
	Max PV Charging Current		80A
Working Mode			Mains priority/Solar priority/Battery priority(Can be set)
Transfer Time			≤4ms
Display			LCD+LED
Communication(Optional)			RS485/APP(WIFI monitoring or GPRS monitoring)
Environment	Operating temperature		0℃~55℃
	Storage temperature		-15℃~60℃
	Noise		≤55dB
	Elevation		2000m(More than derating)
	Humidity		0%~95%(No condensation)
