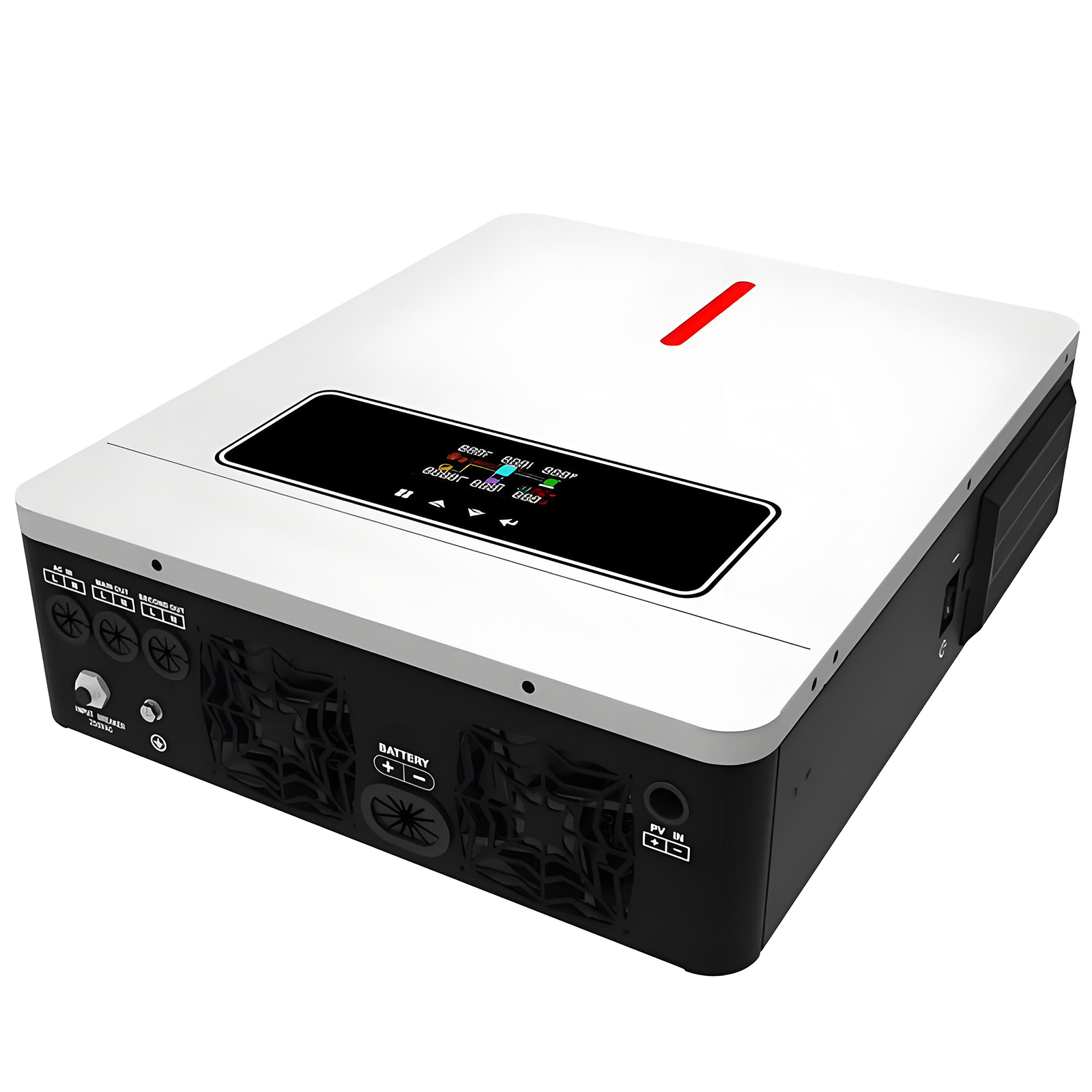

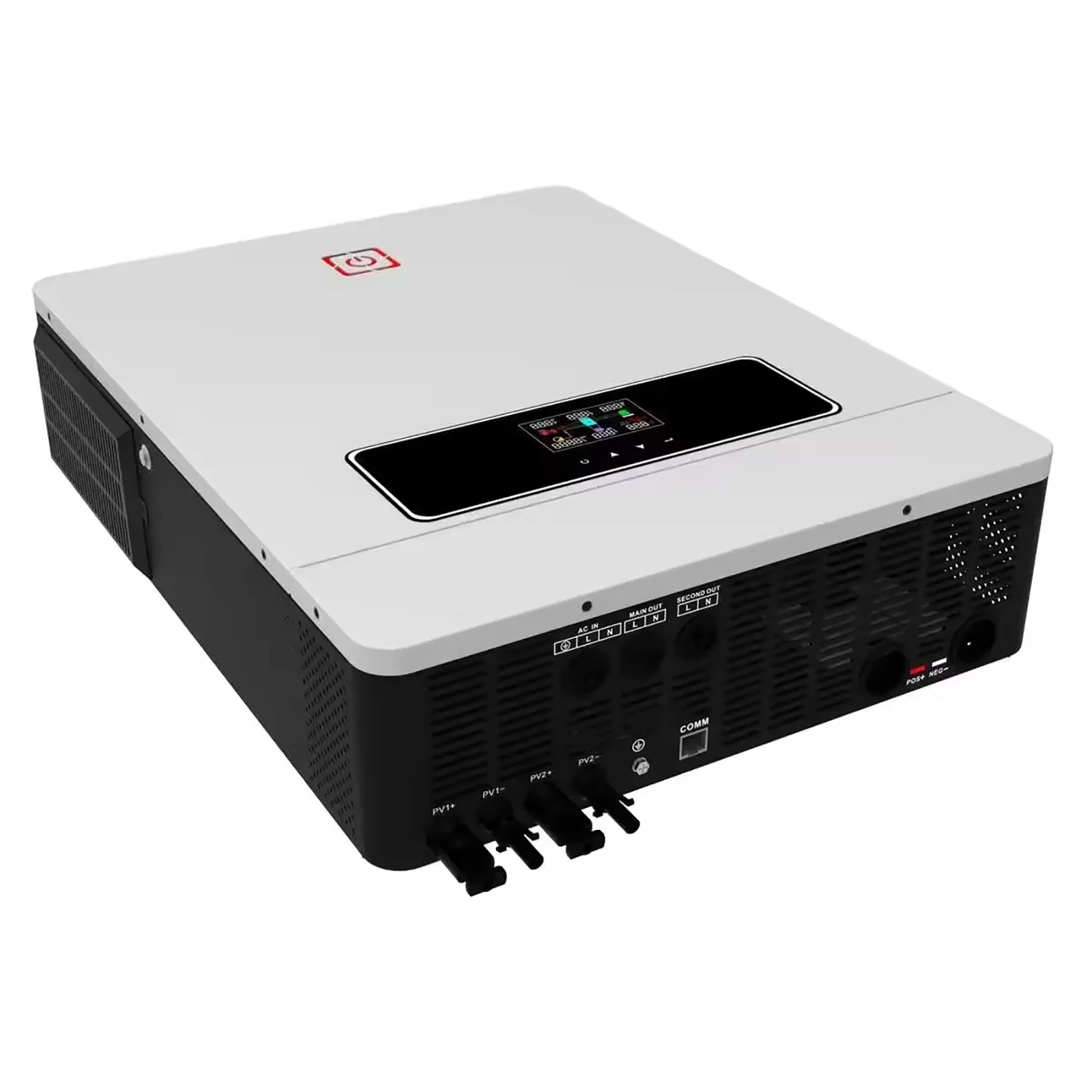

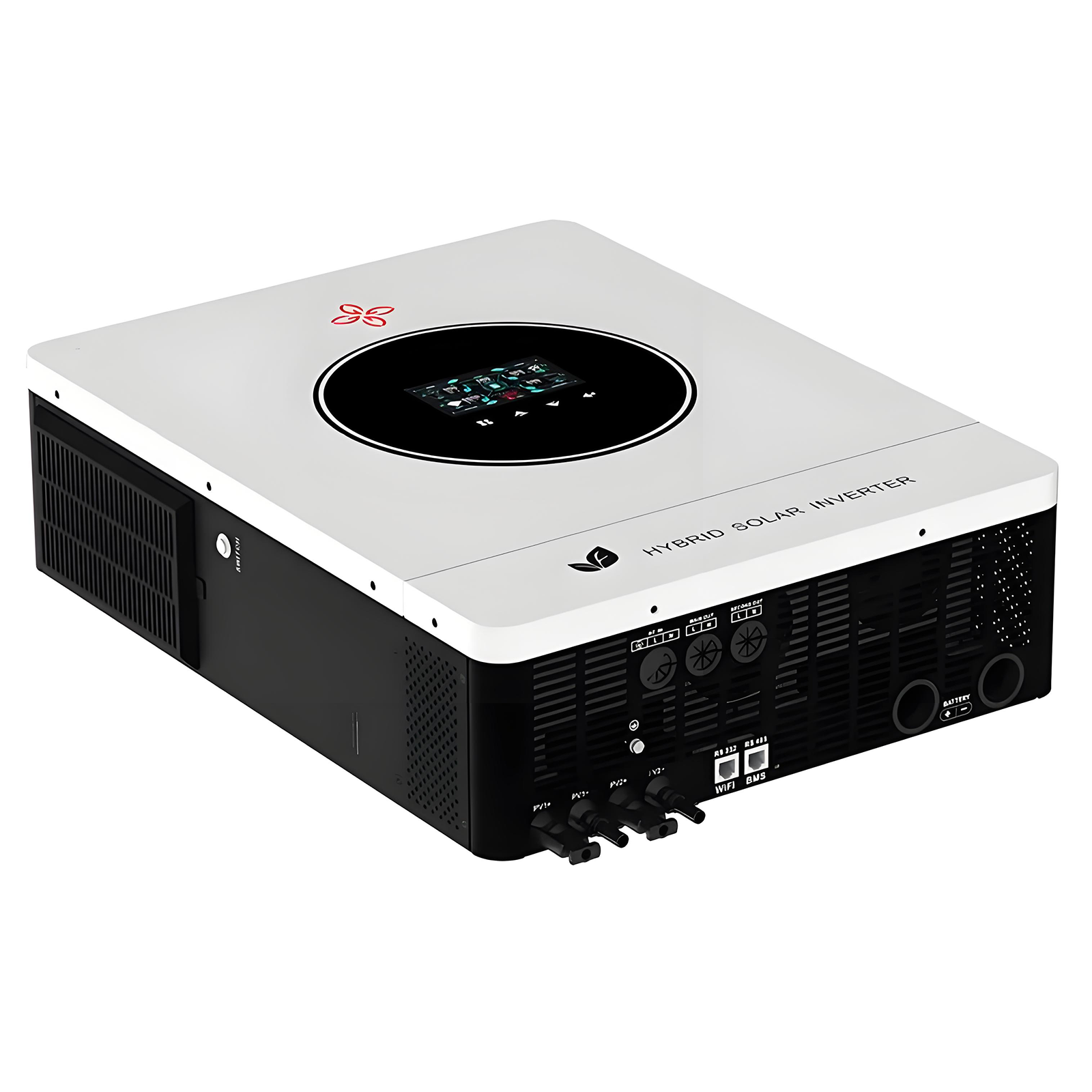

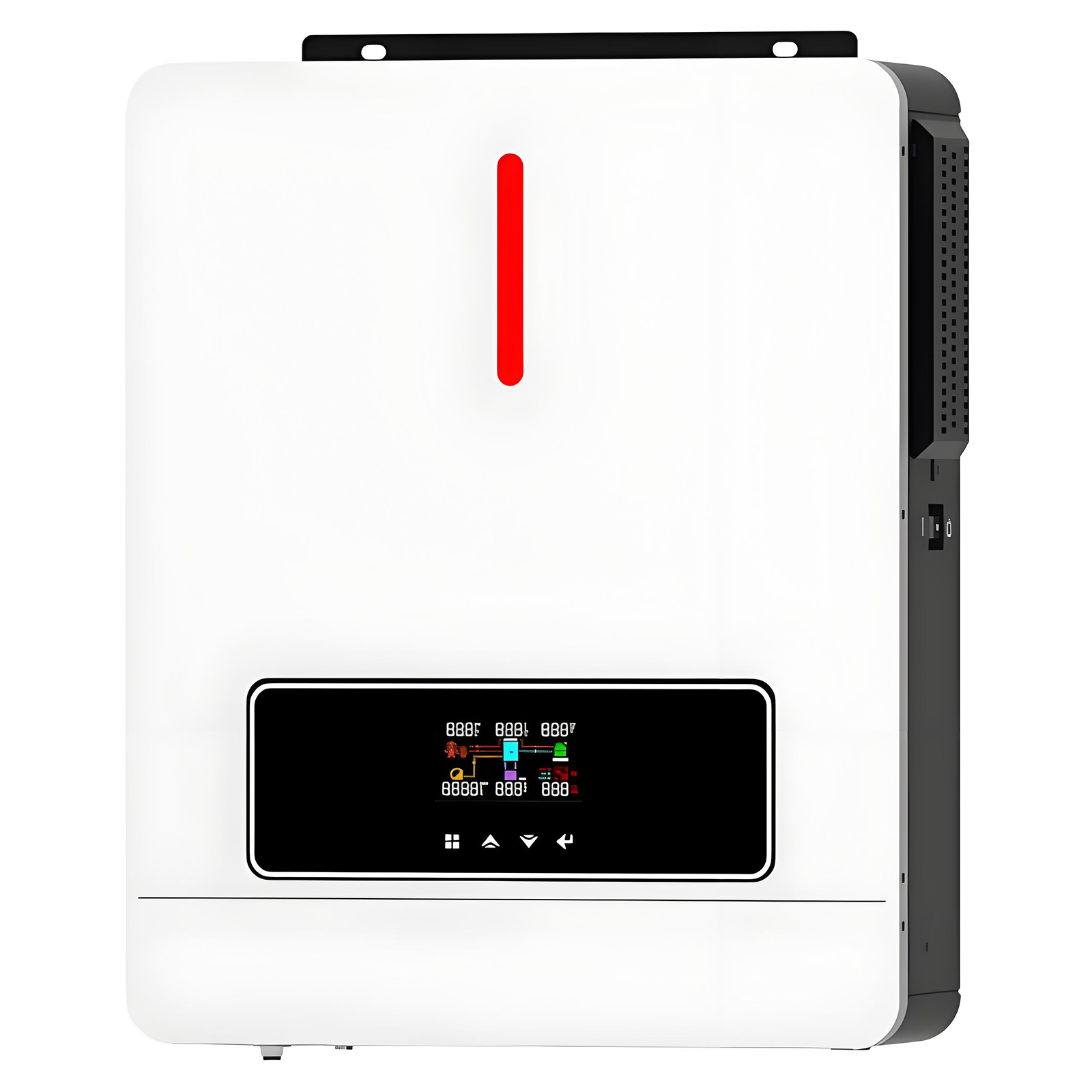

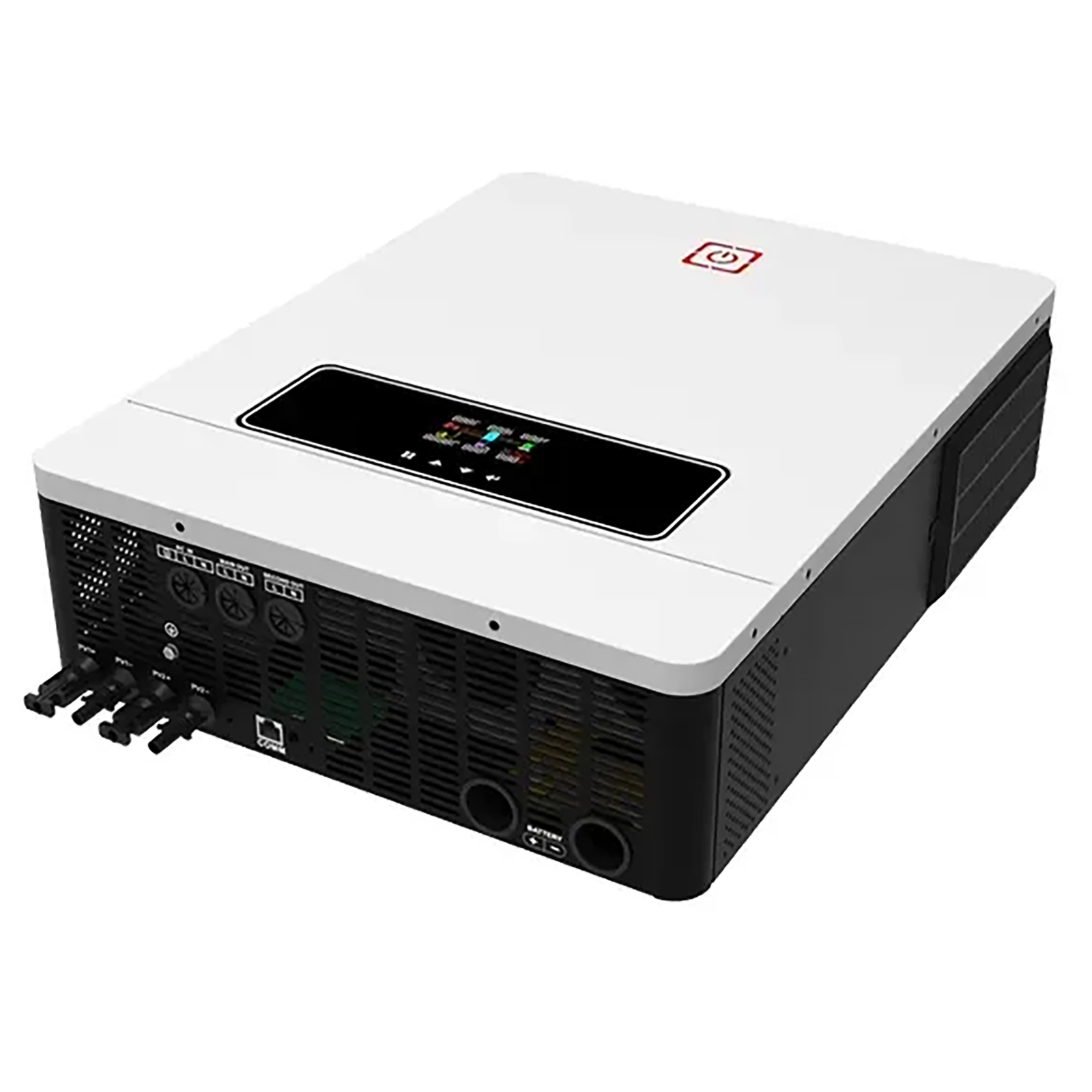

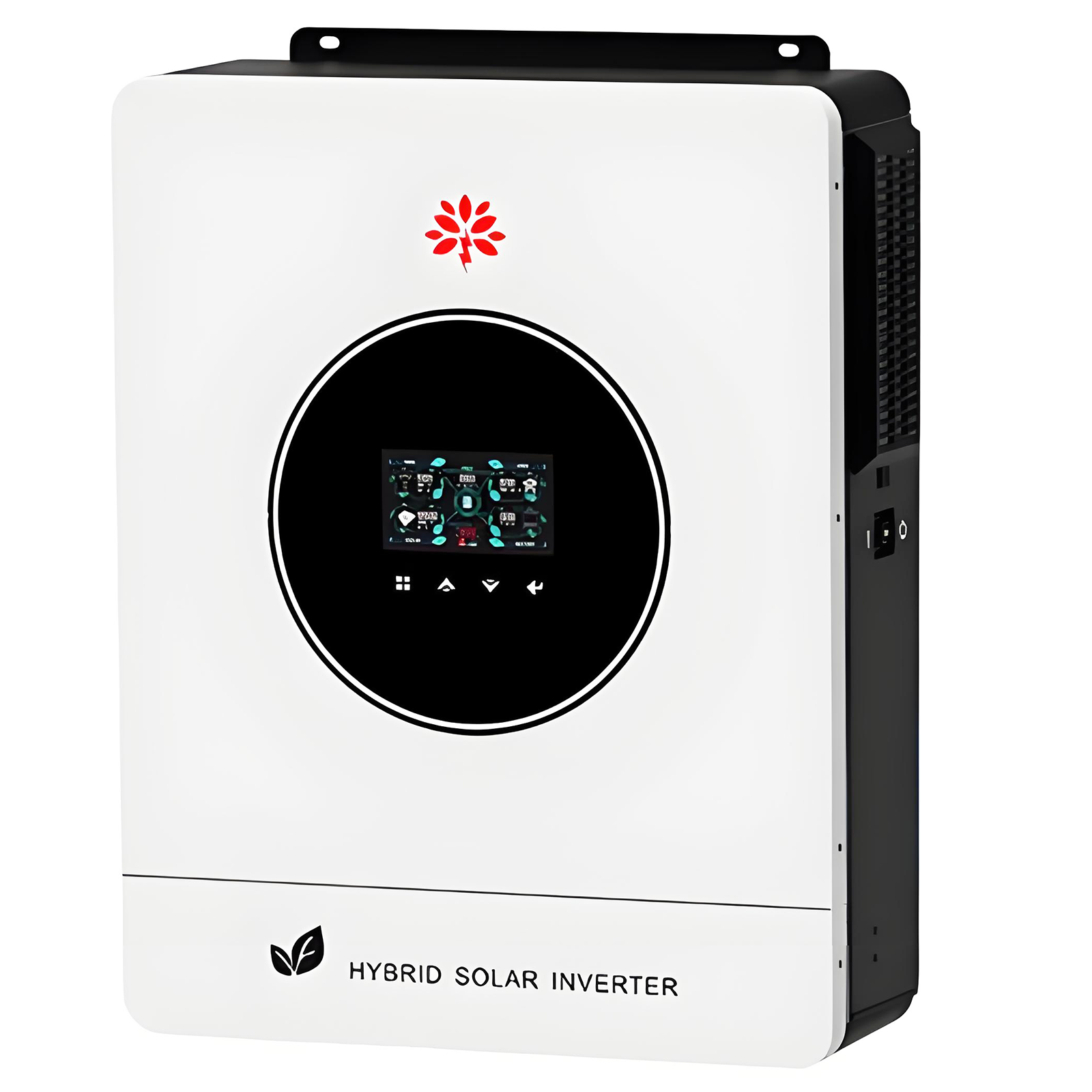

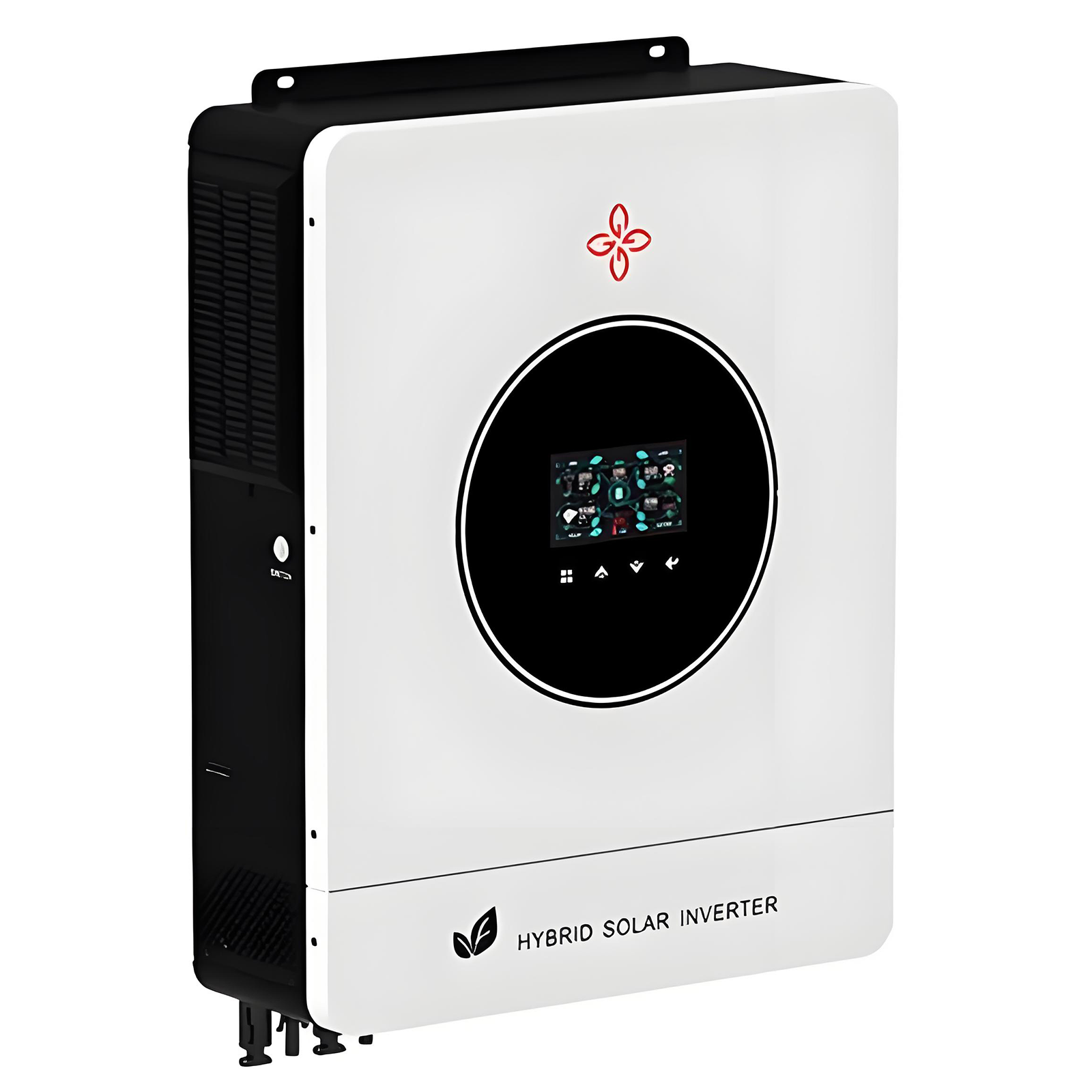

Low Voltage Series 24V/48V 4.2KW 6.2KW 8.2KW 10.2KW On/Off Grid Inverter for Hybrid System

This inverter has multiple specifications to choose, which can provide choices for users with different power requirements. Combined with energy storage batteries, it provides support for unstable areas of the power grid, avoiding power shortages and outages!

Pure sine wave solar inverter(on/off Grid)
WIFI&GPRS available for IOS and Android
Inverter can run without battery
One-key restoration to factory Settings
Built-in Lithium battery automatic activation
Built-in 120A(for 4.2KW/6.2KW) 160A(for 8.2KW/10.2KW) MPPT solar charger
High PV input voltage range(60~450VDC)
Built-in anti-dust kit for harsh environment
Smart battery charge design to optimize battery life
Dual Output

Enquiry

Low Voltage Series 24V/48V 4.2KW 6.2KW 8.2KW 10.2KW On/Off Grid Inverter for Hybrid System

Product Introduction

The series Hybrid Inverter is a high-performance power conversion solution designed for modern solar energy storage systems. Supporting both on-grid and off-grid operation, it delivers flexible, reliable, and efficient power management for homes, small businesses, and remote energy applications.

Built in MPPT Controller

Built-in MPPT controller tracks the maximum power point in real time, improving charging efficiency and overall system performance under varying sunlight conditions, thereby maximizing solar energy harvest.

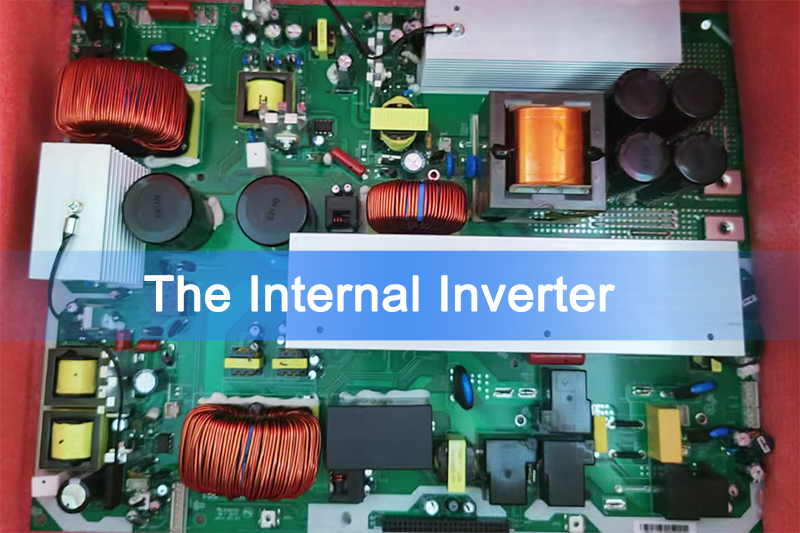

The Internal Inverter

Double-sided conformal coating with full ATE and safety testing for PCB boards.

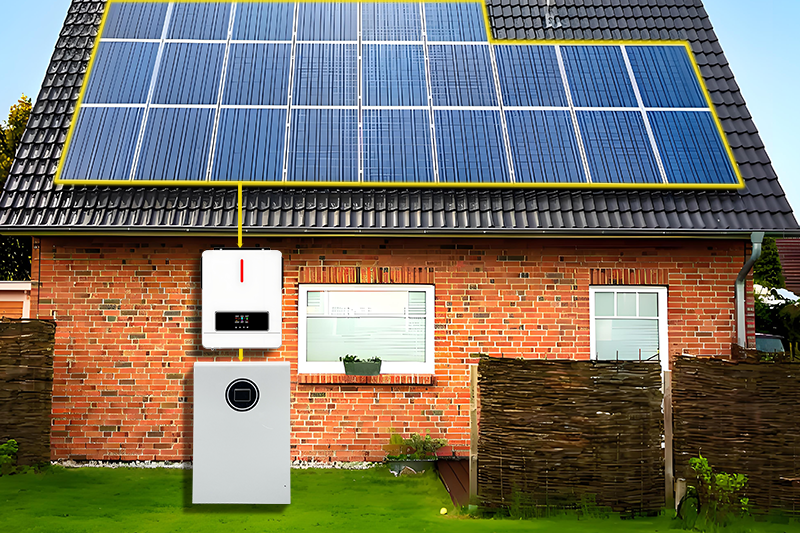

Residential Solar Energy Storage Systems

The home solar storage system integrates solar panels, inverters, and battery storage to provide reliable electricity for households. During the day, inverters convert solar energy into electrical energy, and excess power is stored in batteries for use at night or during peak demand periods, thereby improving self consumption of energy and reducing electricity bills.

Technical Data

If you have any questions during the browsing process, please feel free to contact us and communicate with us at any time.

Model:Mic	Mic-4.2kw	Mic-6.2kw
Phase	1-Phase
Maximum PV Input Power	6200W	6500W
Rated Output Power	4200W/4200VA	6200W/6200VA
Maximum Solar Charging Current	120A
GRID-TIE OPERATION
Nominal DC Voltage/Maximum DC	360VDC/500VDC
Start-up Voltage/lnitial Feeding Voltage	90VDC/120VDC
MPPT Voltage Range	90~450VDC
Number of MPPT/Max Input Current	1/23A
GRID OUTPUT(AC)
Norminal Output Voltage	220/230/240VAC
Frequency	50/60Hz
Output Valtage Range	195.5~253VAC
Norminal Output Current	17A	27.0A
EFFICIENCY
Max Conversion Efficiency(Solar to AC)	98%
TWO LOAD OUTPUT POWER(V2.0)
Full Load	4200W	6200W
Maximum Main Load	4200W	6200W
Max Second Load(battery mode)	1200W	2067W
OFF-GRID OPERATION
Acceptable Input Voltage Range	90-280VAC or 170-280VAC 50/60Hz
Maximum AC Input Current	30A	40A
Surge power	7200W	12400W
BATTERY MODE OUTPUT(AC)
Nominal Output Voltage	220/230/240VAC
Output Waveform	Pure sine wave
Efficiency(DC to AC)	94%
BATTERY&CHARGER
Nominal DC Voltage	24VDC	48VDC
Maximum Solar Charging Current	120A
Maximum AC Charging Current	100A
GENERAL PHYSICAL
Dimension,DWH(mm)	110334423
Net Weight(Kgs)	9	10
Communication Port	RS232/WIFI/GPRS
Operating Temperature	-10~50℃

Model:Mass	Mass-8.2KW	Mass-10.2KW
Phase	Single Phase
Maximum PV Input Power	5400W+5400W	5400W+5400W
Rated Output Power	8200W/8200VA	10200W/10200VA
Maximum Solar Charging Current	160A
GRID-TIE OPERATION
Nominal DC Voltage/Maximum DC Voltage	360VDC/500VDC
Start-up Voltage/lnitial Feeding Voltage	90VDC/120VDC
MPPT Voltage Range	90~450VDC
Number of MPPT/Max Input Current	1/23A+2/18A	1/23A+2/18A
GRID OUTPUT(AC)
Norminal Output Voltage	220/230/240VAC
Output Valtage Range	190-253VDC
Power Factor	>0.99
Norminal Output Current	35.6A	44.3A
EFFICIENCY
Max Conversion Efficiency(Solar to AC)	98%
TWO LOAD OUTPUT POWER(V2.0)
Full Load	8200W	10200W
Maximum Main Load	8200W	10200W
Max Second Load(battery mode)	2733W	3400W
Maxium Load Cut Off Voltage	52VDC	52VDC
Maxium Load Return Voltage	54VDC	54VDC
OFF-GRID OPERATION
AC Start-up voltage/Auto restart voltage	120-140VAC/180VAC
Acceptable Input Voltage Range	90-280VAC or 170-280VAC 50/60Hz
Maximum AC Input Current	40A	50A
BATTERY MODE OUTPUT(AC)
Nominal Output Voltage	220/230/240VAC
Output Waveform	Pure sine wave
Efficiency(DC to AC)	94%
BATTERY&CHARGER
Nominal DC Voltage	48VDC
Maximum Solar Charging Current	160A
Maximum AC Charging Current	140A
Maximum Charging Current	160A
GENERAL PHYSICAL
Dimension,DWH(mm)	530420160
Pack Dimension,DWH(mm)	618463205
Net Weight(Kgs)	16	16.5
Communication Port	RS232/RS485NWIFI/GPRS/LITHIUM BATTERY
Operating Temperature	-10~50℃
